Single star
Jump down to condensed example
This notebook is a basic runthrough for a single star from beginning to end
[1]:
from pysyd import plots
from pysyd.target import Target
from pysyd.utils import Parameters
The Parameters object is a container class for default pySYD parameters. Since the software is customizable down to the individual star level - we create one large, default dictionary, check for star-specific information and then copy that to the individual star’s dictionary. So for n stars, you will have at least n keys in the main parameter dictionary.
KIC 2309595
Step 1. Load pySYD default parameters
[2]:
params = Parameters()
print(params)
<Parameters>
Step 2. Add a target (or any number of targets)
[3]:
name = '2309595'
params.add_targets(stars=name)
# Both verbose output and displaying of figures are disabled since the software is
# optimized for running many stars, so let's change those!
params.params[name]['show'], params.params[name]['verbose'] = True, True
Now that we have the relevant information we want, let’s create a pipeline Target object (or star).
Step 3. Create pipeline Target
[4]:
star = Target(name, params)
print(star)
<Star 2309595>
The individual star’s dictionary is copied to the main params class for this object, so now you only have the single dictionary (you can think of it as a pop of the main dictionary, but it makes copies instead of removing). This means we can directly access the defaults without using the star’s name as a keyword – so now we can change whatever we want directly!
[5]:
print(star.params)
{'path': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/results/2309595', 'show': True, 'save': True, 'test': False, 'verbose': True, 'overwrite': False, 'warnings': False, 'stitch': False, 'gap': 20, 'kep_corr': False, 'oversampling_factor': None, 'estimate': True, 'seed': None, 'numax': None, 'force': False, 'dnu': None, 'binning': 0.005, 'bin_mode': 'mean', 'lower_ex': None, 'upper_ex': None, 'step': 0.25, 'smooth_width': 20.0, 'n_trials': 3, 'ask': False, 'background': True, 'basis': 'tau_sigma', 'box_filter': 1.0, 'fix_wn': False, 'n_laws': None, 'ind_width': 20.0, 'lower_bg': None, 'upper_bg': None, 'metric': 'bic', 'n_rms': 20, 'globe': True, 'ex_width': 1.0, 'lower_ps': None, 'upper_ps': None, 'sm_par': None, 'n_peaks': 5, 'smooth_ps': 2.5, 'fft': True, 'threshold': 1.0, 'hey': False, 'cmap': 'binary', 'clip_value': 3.0, 'interp_ech': False, 'notching': False, 'lower_ech': None, 'upper_ech': None, 'npb': 10, 'nox': None, 'noy': '0+0', 'ridges': False, 'smooth_ech': None, 'mc_iter': 1, 'samples': False, 'n_threads': 0, 'inpdir': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/data', 'infdir': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/info', 'outdir': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/results', 'todo': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/info/todo.txt', 'info': '/Users/ashleychontos/Research/Code/special/pySYD/docs/usage/nb/info/star_info.csv', 'show_all': False, 'functions': {0: <function get_dict.<locals>.<lambda> at 0x13eb660e0>, 1: <function get_dict.<locals>.<lambda> at 0x13eb66170>, 2: <function get_dict.<locals>.<lambda> at 0x13eb66200>, 3: <function get_dict.<locals>.<lambda> at 0x13eb66290>, 4: <function get_dict.<locals>.<lambda> at 0x13eb66320>, 5: <function get_dict.<locals>.<lambda> at 0x13eb663b0>, 6: <function get_dict.<locals>.<lambda> at 0x13eb66440>, 7: <function get_dict.<locals>.<lambda> at 0x13eb664d0>}, 'cli': True, 'notebook': False, 'ech_mask': None}
Now we will attempt to load in the target data which will return a boolean that says if it’s ok to proceed.
[6]:
print(star.load_data())
ERROR: no data found for target 2309595
-> please make sure you are in the correct
directory and try again!
False
Well, glad that worked as expected. By default it assumes that the input data and information reside in the current working directory (which is not the case here because I live in the documentation folder). Let’s change the paths and try again!
(i.e. I am going to use the path that works for my example notebook but you will need to change this to wherever your example data are)
[7]:
star.params['inpdir']='/Users/ashleychontos/Research/Code/special/pySYD/dev/data/'
star.params['infdir']='/Users/ashleychontos/Research/Code/special/pySYD/dev/info/'
star.params['outdir']='/Users/ashleychontos/Research/Code/special/pySYD/dev/results/'
print(star.load_data())
-----------------------------------------------------------
Target: 2309595
-----------------------------------------------------------
# LIGHT CURVE: 41949 lines of data read
# Time series cadence: 59 seconds
# POWER SPECTRUM: 106123 lines of data read
# PS oversampled by a factor of 5
# PS resolution: 0.400298 muHz
True
Looks like we’re ready to go!
Let’s estimate some starting points for the main module.
Step 3. Estimate parameters
[8]:

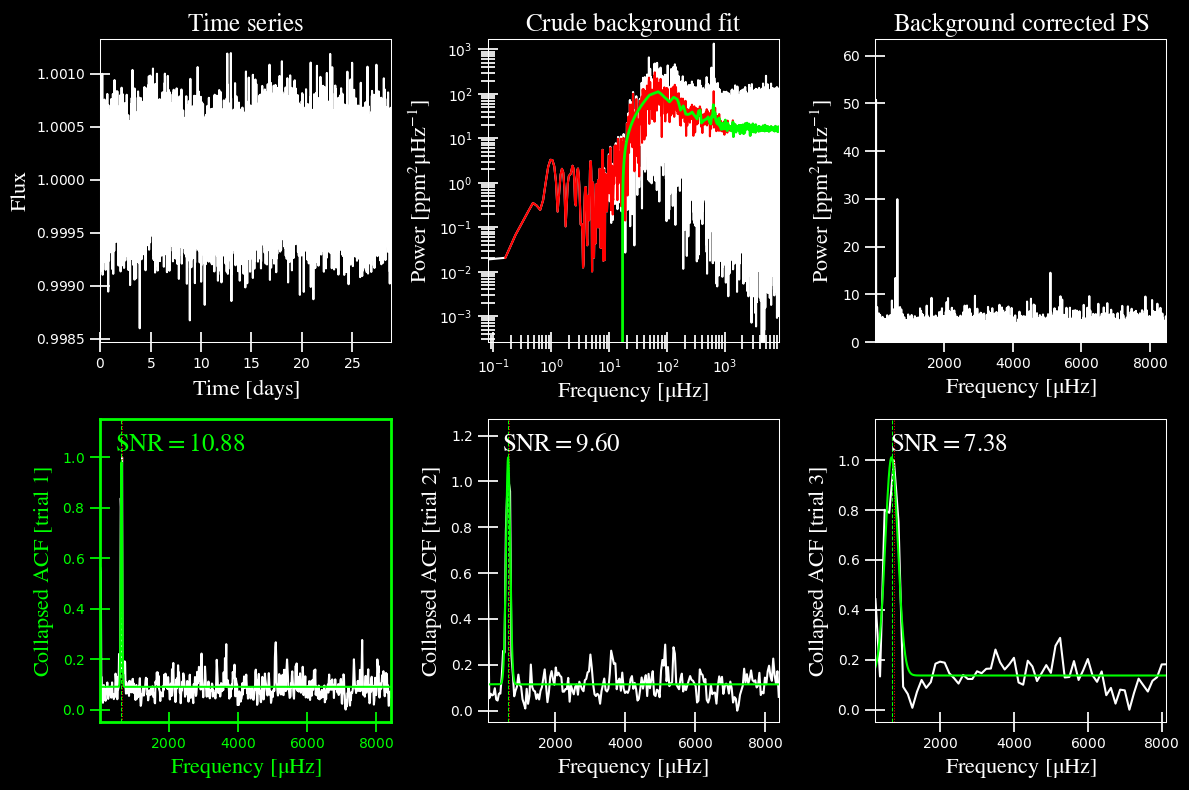

star.estimate_parameters()
plots.plot_estimates(star)
-----------------------------------------------------------
PS binned to 224 datapoints
Numax estimates
---------------
Estimate 1: 636.51 +/- 10.12
S/N: 10.88
Estimate 2: 656.61 +/- 29.93
S/N: 9.60
Estimate 3: 686.28 +/- 85.35
S/N: 7.38
Selecting model 1
All the trials give consistent answers for \(\rm \nu_{max}\) that I also agree with by eye, so I think we can move on to the full fit.
Step 4. Derive parameters
[9]:
star.derive_parameters()
plots.plot_parameters(star)
-----------------------------------------------------------
GLOBAL FIT
-----------------------------------------------------------
PS binned to 397 data points
Background model
----------------
Comparing 8 different models:
Model 0: 0 Harvey-like component(s) + white noise fixed
BIC = 39836.17 | AIC = 100.34
Model 1: 0 Harvey-like component(s) + white noise term
BIC = 40791.87 | AIC = 102.74
Model 2: 1 Harvey-like component(s) + white noise fixed
BIC = 39848.14 | AIC = 100.35
Model 3: 1 Harvey-like component(s) + white noise term
BIC = 40803.88 | AIC = 102.75
Model 4: 2 Harvey-like component(s) + white noise fixed
BIC = 39860.10 | AIC = 100.36
Model 5: 2 Harvey-like component(s) + white noise term
BIC = 40815.81 | AIC = 102.76
Model 6: 3 Harvey-like component(s) + white noise fixed
BIC = 39872.07 | AIC = 100.37
Model 7: 3 Harvey-like component(s) + white noise term
BIC = 40828.11 | AIC = 102.77
Based on BIC statistic: model 0
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Input In [9], in <cell line: 1>()
----> 1 star.derive_parameters()
2 plots.plot_parameters(star)
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:987, in Target.derive_parameters(self, mc_iter)
985 # get initial values and fix data
986 self.initial_parameters()
--> 987 self.first_step()
988 # if the first step is ok, carry on
989 if self.params['mc_iter'] > 1:
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1165, in Target.first_step(self, background, globe)
1163 # Background corrections
1164 self.estimate_background()
-> 1165 self.model_background()
1166 # Global fit
1167 if self.params['globe']:
1168 # global fit
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1428, in Target.model_background(self, n_laws, fix_wn, basis)
1426 # Did the fit converge
1427 if np.isfinite(min(self.params[self.params['metric']])):
-> 1428 self.correct_background()
1429 # Otherwise raise error that fit did not converge
1430 else:
1431 self.converge = False
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1483, in Target.correct_background(self, metric)
1481 self.bg_div = self.random_pow/models.background(self.frequency, self.params['pars'], noise=self.params['noise'])
1482 if self.params['save']:
-> 1483 utils.save_file(self.frequency, self.bg_div, os.path.join(self.params['path'], '%s_BDPS.txt'%self.name), overwrite=self.params['overwrite'])
1484 self.bg_sub = self.random_pow-models.background(self.frequency, self.params['pars'], noise=self.params['noise'])
1485 if self.params['save']:
AttributeError: module 'pysyd.utils' has no attribute 'save_file'
In the verbose output, the ‘output parameters’ have no uncertainties on the derived values. This is because the number of iterations is 1 by default, for a single iteration. You also might’ve noticed that there are two different estimates for \(\rm \nu_{max}\). For posterity, the ``SYD`` pipeline also estimated both of these values but traditionally used \(\rm \nu_{max,smooth}\) within the literature. *We recommend that you do the same.*
To estimate uncertainties for these parameters, we’ll need to set the number of iterations to something much higher (typically on the order of a hundred or so).
Step 5. Derive uncertainties
[10]:
star.params['show'], star.params['mc_iter'] = False, 200
star.process_star()
-----------------------------------------------------------
PS binned to 224 datapoints
Numax estimates
---------------
Estimate 1: 636.51 +/- 10.12
S/N: 10.88
Estimate 2: 656.61 +/- 29.93
S/N: 9.60
Estimate 3: 686.28 +/- 85.35
S/N: 7.38
Selecting model 1
-----------------------------------------------------------
GLOBAL FIT
-----------------------------------------------------------
PS binned to 397 data points
Background model
----------------
Comparing 4 different models:
Model 0: 0 Harvey-like component(s) + white noise fixed
BIC = 39836.17 | AIC = 100.34
Model 1: 1 Harvey-like component(s) + white noise fixed
BIC = 39848.14 | AIC = 100.35
Model 2: 2 Harvey-like component(s) + white noise fixed
BIC = 39860.10 | AIC = 100.36
Model 3: 3 Harvey-like component(s) + white noise fixed
BIC = 39872.07 | AIC = 100.37
Based on BIC statistic: model 0
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Input In [10], in <cell line: 2>()
1 star.params['show'], star.params['mc_iter'] = False, 200
----> 2 star.process_star()
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:157, in Target.process_star(self)
155 self.params['results'], self.params['plotting'] = {}, {}
156 self.estimate_parameters()
--> 157 self.derive_parameters()
158 if self.params['test']:
159 return self.params['results'].pop('parameters')
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:987, in Target.derive_parameters(self, mc_iter)
985 # get initial values and fix data
986 self.initial_parameters()
--> 987 self.first_step()
988 # if the first step is ok, carry on
989 if self.params['mc_iter'] > 1:
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1165, in Target.first_step(self, background, globe)
1163 # Background corrections
1164 self.estimate_background()
-> 1165 self.model_background()
1166 # Global fit
1167 if self.params['globe']:
1168 # global fit
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1428, in Target.model_background(self, n_laws, fix_wn, basis)
1426 # Did the fit converge
1427 if np.isfinite(min(self.params[self.params['metric']])):
-> 1428 self.correct_background()
1429 # Otherwise raise error that fit did not converge
1430 else:
1431 self.converge = False
File /usr/local/lib/python3.10/site-packages/pysyd/target.py:1483, in Target.correct_background(self, metric)
1481 self.bg_div = self.random_pow/models.background(self.frequency, self.params['pars'], noise=self.params['noise'])
1482 if self.params['save']:
-> 1483 utils.save_file(self.frequency, self.bg_div, os.path.join(self.params['path'], '%s_BDPS.txt'%self.name), overwrite=self.params['overwrite'])
1484 self.bg_sub = self.random_pow-models.background(self.frequency, self.params['pars'], noise=self.params['noise'])
1485 if self.params['save']:
AttributeError: module 'pysyd.utils' has no attribute 'save_file'
Step 6. Peep results
[11]:
star.params['show'] = True
plots.plot_samples(star)
---------------------------------------------------------------------------
AttributeError Traceback (most recent call last)
Input In [11], in <cell line: 2>()
1 star.params['show'] = True
----> 2 plots.plot_samples(star)
File /usr/local/lib/python3.10/site-packages/pysyd/plots.py:472, in plot_samples(star, filename)
461 def plot_samples(star, filename='samples.png'):
462 """
463 Plot results of the Monte-Carlo sampling
464
(...)
470
471 """
--> 472 x, y = d[len(star.df.columns.values.tolist())]['x'], d[len(star.df.columns.values.tolist())]['y']
473 params = utils.get_dict()
474 sample = star.params['plotting']['samples']
AttributeError: 'Target' object has no attribute 'df'
As you can see, it still liked the same model (good sanity check) and the derived value for \(\rm \nu_{max}\) was robust to this and did not change.
So now we have both parameters and uncertainties!
Condensed version
[ Putting it all together with star.process_star() ]
[ ]:
name='2309595'
params = Parameters()
params.add_targets(stars=name)
params.params[name]['verbose'], params.params[name]['mc_iter'] = True, 200
star = Target(name, params)
if star.load_data():
star.process_star()
